de.mfuchs.Example1 Class Reference

Example for writing and reading a XML file. More...

List of all members.

Public Member Functions

void testWrite () throws Exception
 Write exampe XML file.
void testRead () throws Exception
 Read the example file back again.

Static Public Member Functions

static void main (String[] args)
 Main function of Example1.

Detailed Description

Example for writing and reading a XML file.

Author:
martin

Definition at line 53 of file Example1.java.


Member Function Documentation

static void de.mfuchs.Example1.main ( String[]  args ) [static]

Main function of Example1.

Parameters:
argsunused command line arguments

Definition at line 142 of file Example1.java.

References de.mfuchs.Example1.testRead(), and de.mfuchs.Example1.testWrite().

    {
        Example1 me = new Example1();

        try {
            me.testWrite();
            me.testRead();
        } catch(Exception e) {
            e.printStackTrace();
        }
    }

Here is the call graph for this function:

void de.mfuchs.Example1.testRead (  ) throws Exception

Read the example file back again.

Exceptions:
Exception

Definition at line 104 of file Example1.java.

References de.mfuchs.xmlstorage.XMLPos.back(), de.mfuchs.xmlstorage.XMLPos.getContent(), de.mfuchs.xmlstorage.XMLPos.go(), de.mfuchs.xmlstorage.XMLPos.goDown(), and de.mfuchs.xmlstorage.XMLDoc.readFile().

Referenced by de.mfuchs.Example1.main().

    {
        XMLDoc doc = new XMLDoc();

         // Einlesen des XML-Files
        doc.readFile("example1.xml");

        String txt = "";
        String filename = "";

        XMLPos pos = new XMLPos(doc);

        if (pos.goDown("PARAMS")) {
            if (pos.goDown("TEXT")) {
                txt = pos.getContent();
                pos.back();
            }
            pos.back();
        }

         // Abfrage eines Elementinhalts, beispielsweise von FONT_FILENAME
        if (pos.go("PARAMS/FONT/FONT_FILENAME")) {
            filename = pos.getContent();
            pos.back();
        }

         // Ausgabe der ermittelten Werte
        System.out.println("TEXT: " + txt);
        System.out.println("font filename: " + filename);

        assertEquals("Arial.ttf", filename);
    }

Here is the call graph for this function:

void de.mfuchs.Example1.testWrite (  ) throws Exception

Write exampe XML file.

Exceptions:
Exception

Definition at line 59 of file Example1.java.

References de.mfuchs.xmlstorage.XMLPos.back(), de.mfuchs.xmlstorage.XMLPos.create(), de.mfuchs.xmlstorage.XMLPos.setContent(), and de.mfuchs.xmlstorage.XMLDoc.writeFile().

Referenced by de.mfuchs.Example1.main().

    {
        XMLDoc doc = new XMLDoc();
        XMLPos pos = new XMLPos(doc);

         // Zusammenstellen der XML-Struktur im Dokument 'doc'
        pos.create("PARAMS");
          pos.create("TEXT");
            pos.setContent("Testgruppe\nZeile 2", true);
          pos.back(); // </TEXT>

          pos.create("COLOR");
            pos.create("RED");
            pos.setContent("234");
            pos.back(); // </RED>

            pos.create("GREEN");
            pos.setContent("22");
            pos.back(); // </GREEN>

            pos.create("BLUE");
            pos.setContent("33");
            pos.back(); // </BLUE>
          pos.back(); // </COLOR>

          pos.create("FONT");
            pos.create("FONT_FILENAME");
            pos.setContent("Arial.ttf");
            pos.back(); // </FONT_FILENAME>

            pos.create("SIZE");
            pos.setContent("12");
            pos.back(); // </SIZE>
          pos.back(); // </FONT>
        pos.back(); // </PARAMS>

         // Schreiben der XML-Datei
        doc.writeFile("example1.xml");
    }

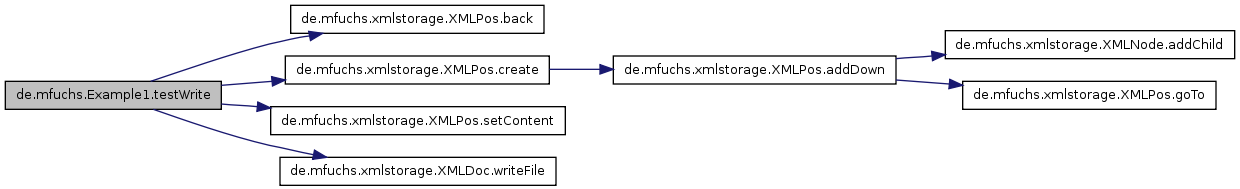

Here is the call graph for this function:
